QLC5100TXC1 type
QLC5100TXC1 type
Classification
QLC5100TXC1 type
Product Introduction

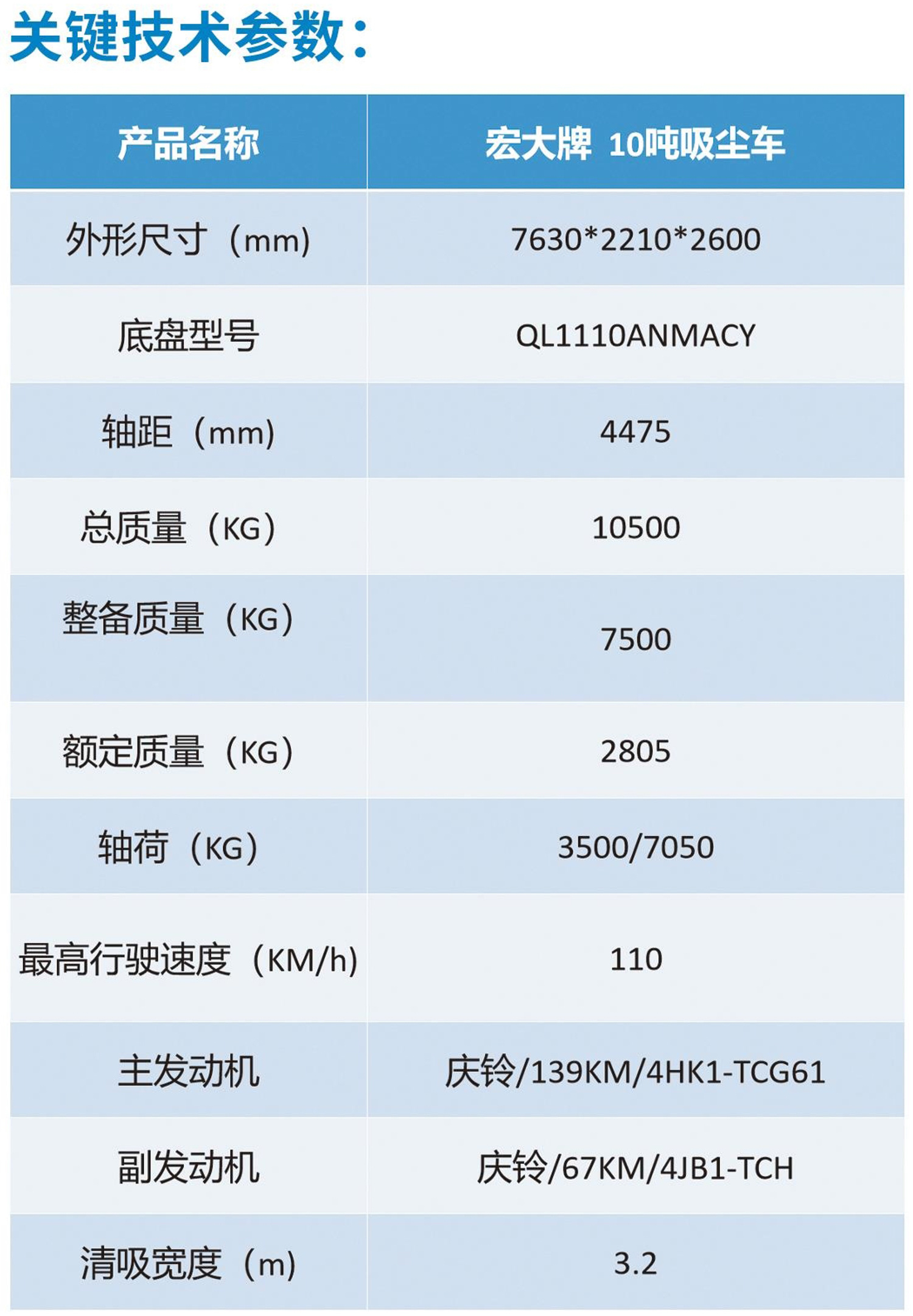

Key Technical Parameters
- Product Name: Hongda Brand 10 - ton Vacuum Cleaner Truck
- Overall Dimensions (mm): 7630*2210*2600
- Chassis Model: QL1110ANMACY
- Wheelbase (mm): 4475
- Gross Mass (kg): 10500
- Curb Mass (kg): 7500
- Rated Mass (kg): 2805
- Axle Load (kg): 3500/7050
- Maximum Travel Speed (km/h): 110
- Main Engine: Qingling / 139KM / 4HK1 - TCG61
- Auxiliary Engine: Qingling / 67KM / 4JB1 - TCH
- Cleaning Width (m): 3.2

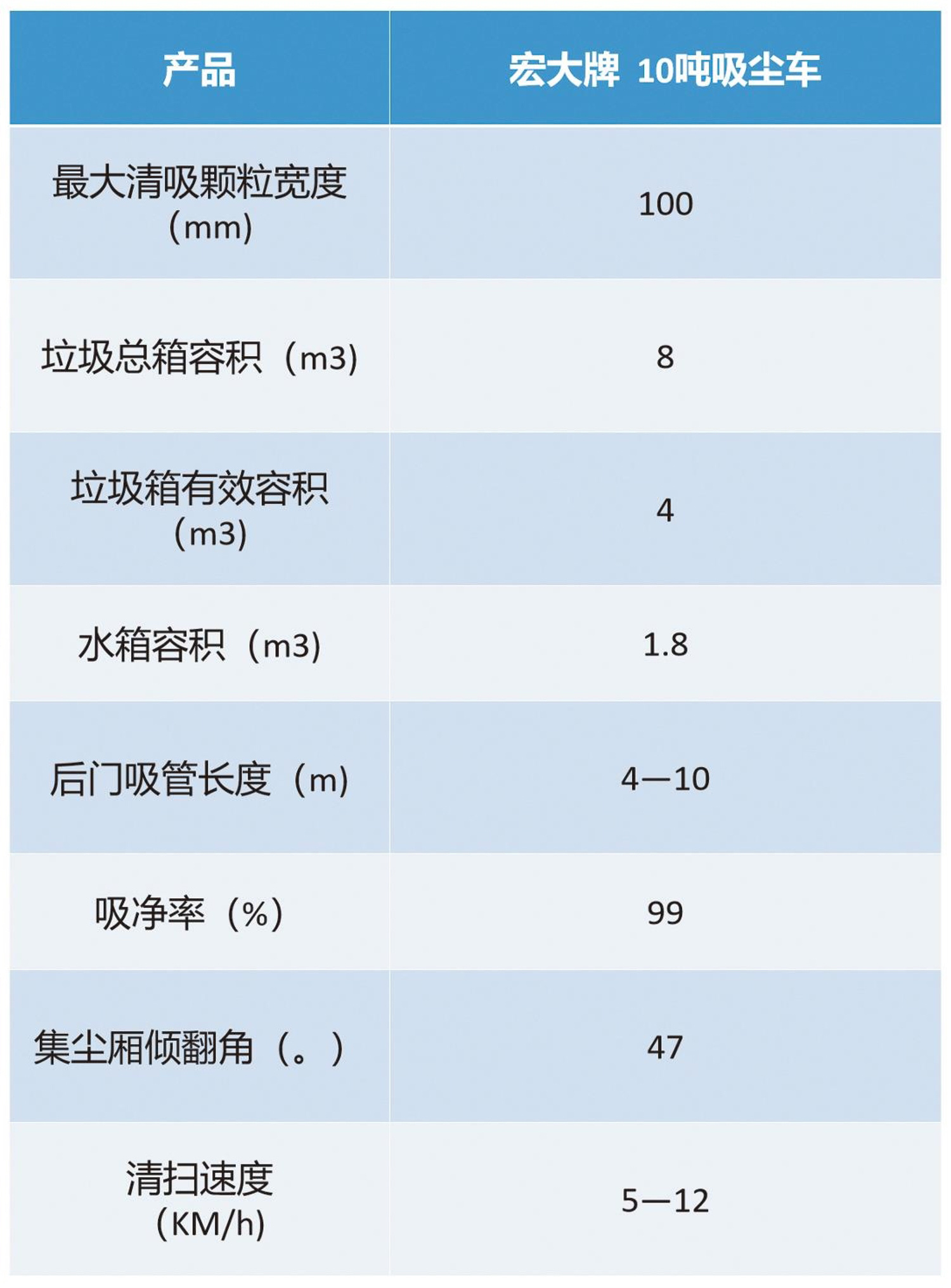

- Maximum Cleaning Particle Width (mm): 100
- Total Garbage Bin Volume (m³): 8
- Effective Volume of Garbage Bin (m³): 4
- Water Tank Volume (m³): 1.8
- Rear Door Suction Pipe Length (m): 4 - 10
- Suction Rate (%): 99
- Dust Collection Compartment Tipping Angle (°): 47
- Cleaning Speed (km/h): 5 - 12
