QLC5314GXY7
8*4 drive; volume 24.1 cubic meters; chassis: Sinotruk Howo
Classification
QLC5314GXY7

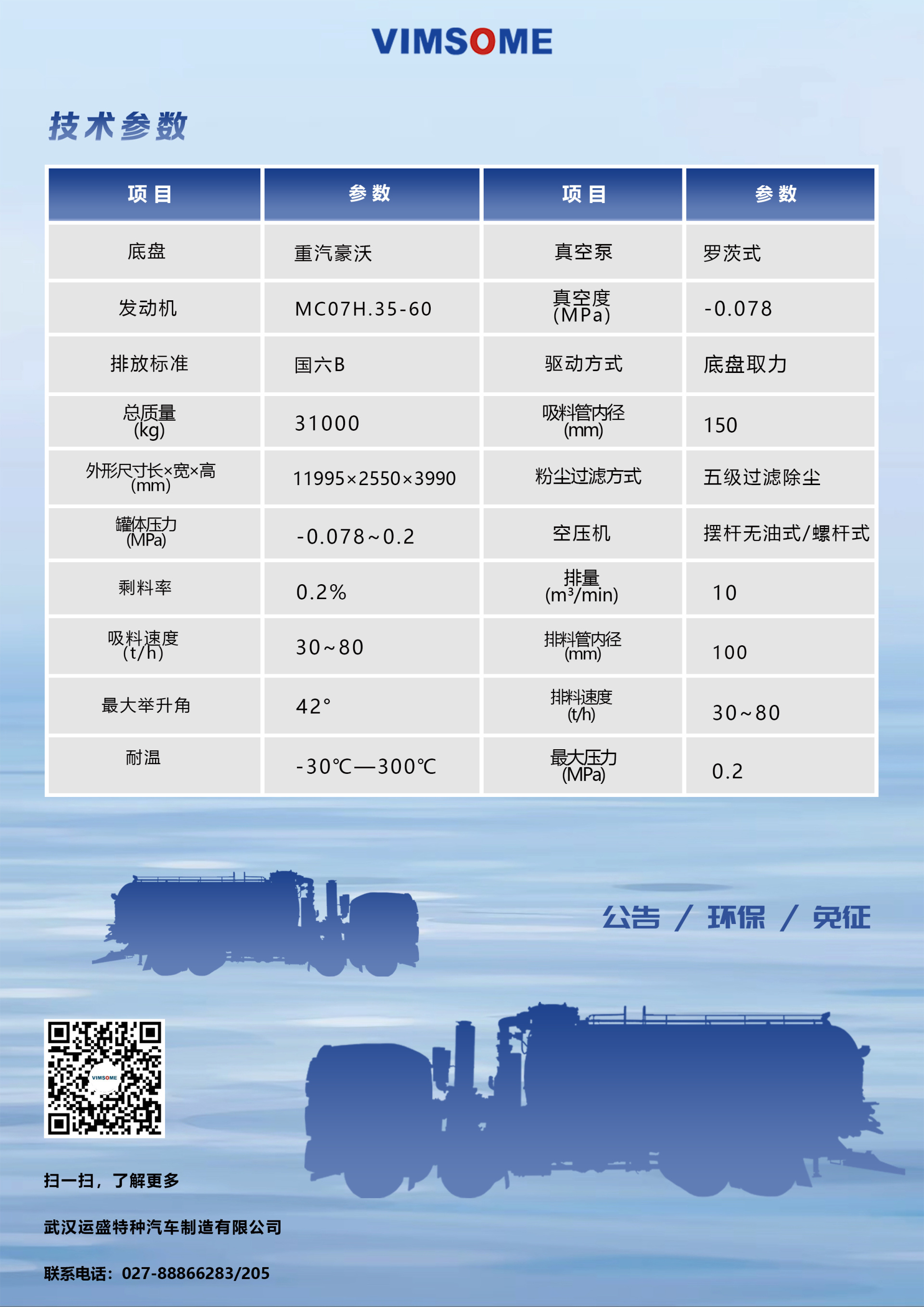

Product Introduction
- Chassis: Sinotruk Howo
- Engine: MC07H.35 - 60
- Emission Standard: China Ⅵ B
- Gross Mass (kg): 31000
- Overall Dimensions (Length × Width × Height, mm): 11995×2550×3990
- Tank Pressure (MPa): -0.078 ~ 0.2
- Residue Rate: 0.2%
- Material Suction Rate (t/h): 30 ~ 80
- Maximum Lifting Angle: 42°
- Temperature Resistance: -30℃ — 300℃
- Vacuum Pump: Roots Type
- Vacuum Degree (MPa): -0.078
- Drive Mode: Chassis Power Take - off
- Inner Diameter of Suction Pipe (mm): 150
- Dust Filtration Method: Five - stage Filtration for Dust Removal
- Air Compressor: Swing Rod Oil - free Type/Screw Type
- Displacement (m³/min): 10
- Inner Diameter of Discharge Pipe (mm): 100
- Material Discharge Rate (t/h): 30 ~ 80
- Maximum Pressure (MPa): 0.2
