QLC5314GXY9
8*4 drive; volume 21.7 cubic meters; chassis: Sinotruk Howo
Classification
QLC5314GXY9
Product Introduction

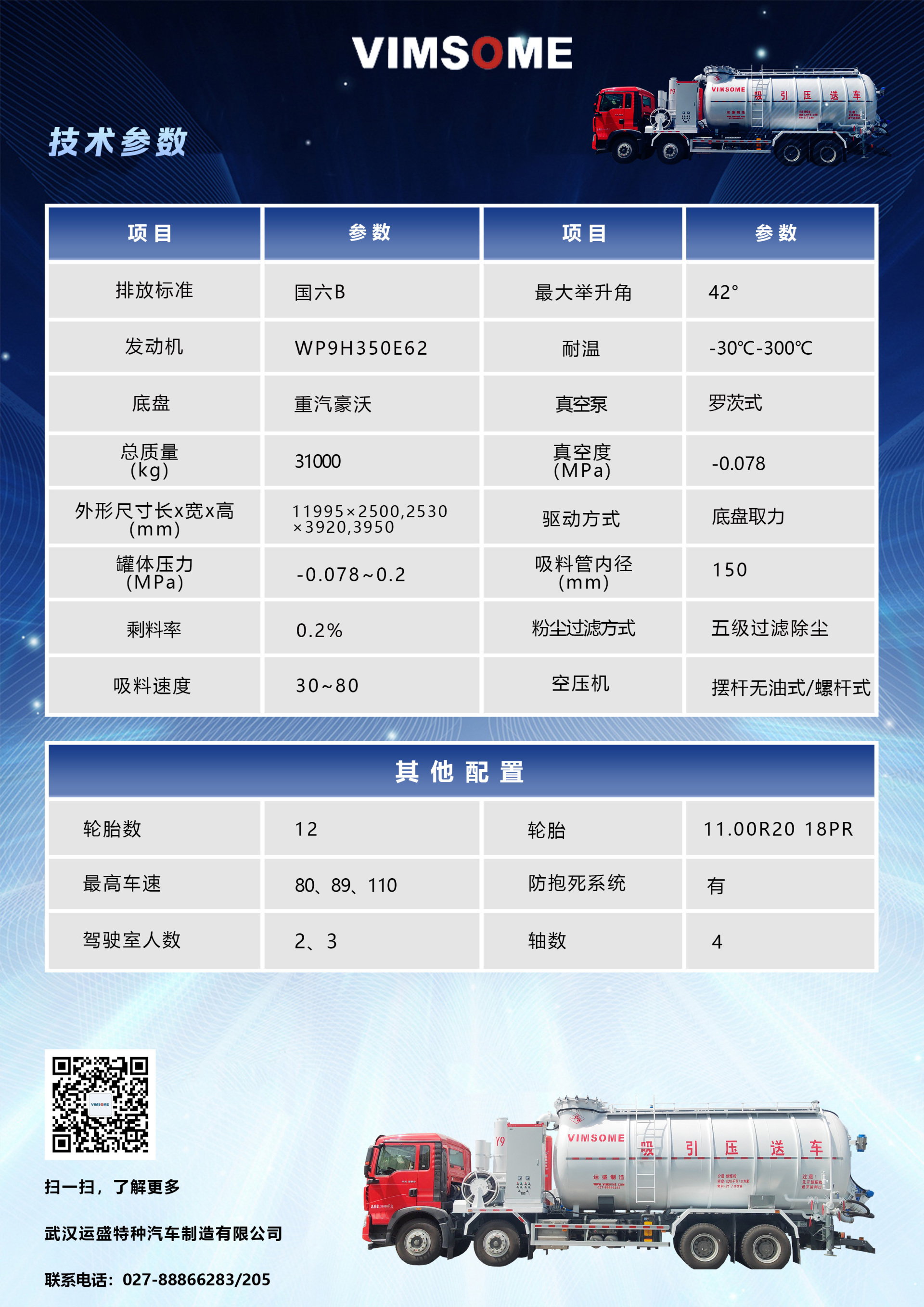

Technical Parameters
- Emission Standard: China VI B
- Engine: WP9H350E62
- Chassis: Sinotruk Howo
- Gross Mass (kg): 31000
- Overall Dimensions (mm)
(Length×Width×Height): 11995×2500,2530×3920,3950 - Tank Pressure (MPa): -0.078 ~ 0.2
- Residue Rate: 0.2%
- Suction Speed: 30 ~ 80
- Maximum Lifting Angle: 42°
- Temperature Resistance: -30℃ - 300℃
- Vacuum Pump: Roots Type
- Vacuum Degree (MPa): -0.078
- Driving Method: Chassis Power Take - off
- Inner Diameter of Suction Pipe (mm): 150
- Dust Filtration Method: Five - stage Filtration and Dust Removal
- Air Compressor: Swing Rod Oil - free Type/Screw Type
Other Configurations
- Number of Tires: 12
- Tire: 11.00R20 18PR
- Maximum Speed: 80, 89, 110
- Anti - lock Braking System (ABS): Available
- Number of People in Cab: 2, 3
- Number of Axles: 4
Wuhan Yunshengte Automobile Manufacturing Co., Ltd.
Contact Tel: 027 - 88866283/205
