QLC5314GXY6 type
8*4 drive; volume 24.1 cubic meters; chassis: Sinotruk Howo
Classification
QLC5314GXY6 type

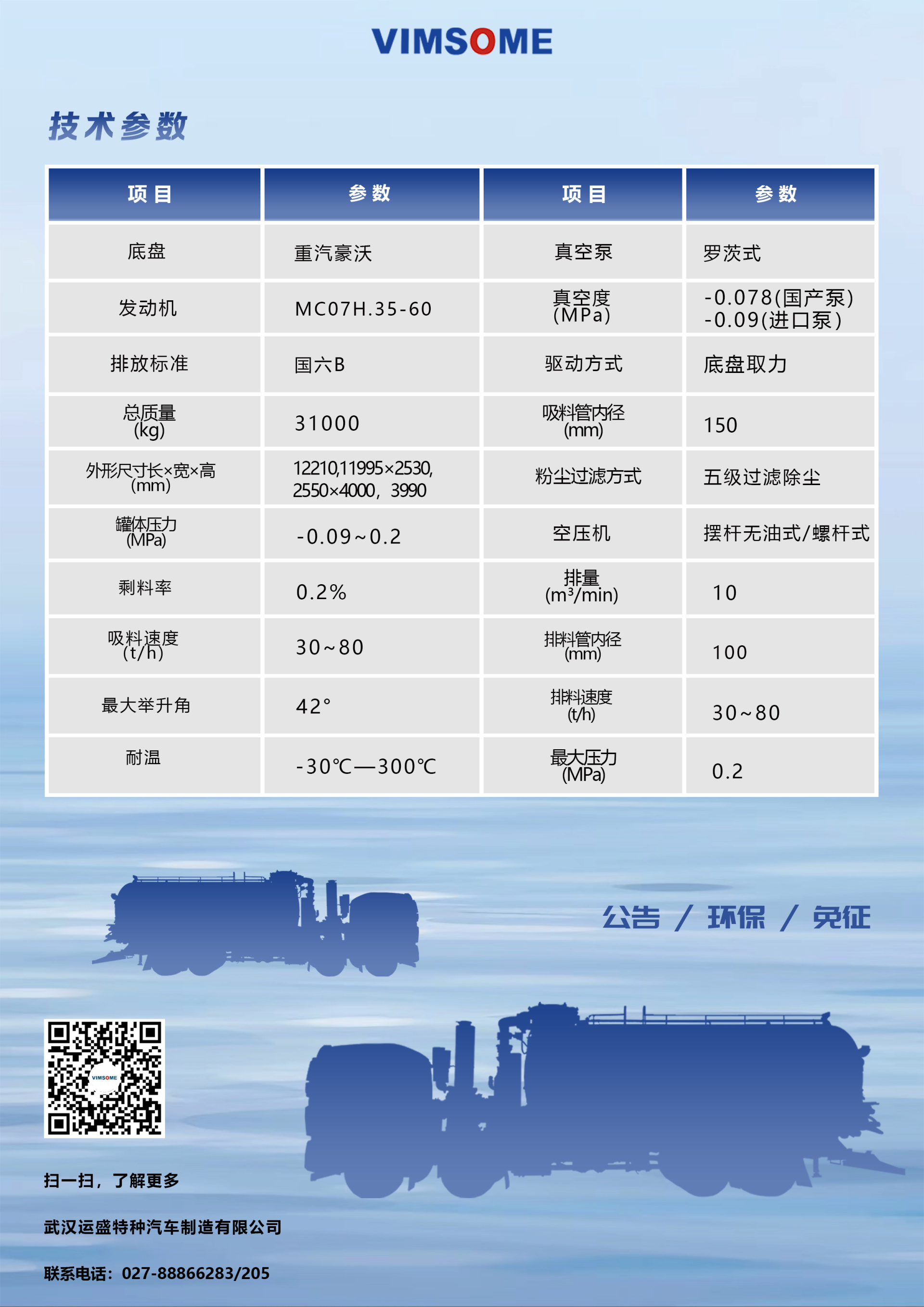

Product Introduction
- Chassis: Sinotruk Howo
- Engine: MC07H.35 - 60
- Emission Standard: China Ⅵ B
- Gross Mass (kg): 31000
- Overall Dimensions (Length × Width × Height, mm): 12210, 11995×2530, 2550×4000, 3990
- Tank Pressure (MPa): -0.09 ~ 0.2
- Residue Rate: 0.2%
- Material Suction Rate (t/h): 30 ~ 80
- Maximum Lifting Angle: 42°
- Temperature Resistance: -30℃ — 300℃
- Vacuum Pump: Roots Type
- Vacuum Degree (MPa): -0.078 (Domestic Pump); -0.09 (Imported Pump)
- Drive Mode: Chassis Power Take - off
- Inner Diameter of Suction Pipe (mm): 150
- Dust Filtration Method: Five - stage Filtration for Dust Removal
- Air Compressor: Swing Rod Oil - free Type/Screw Type
- Displacement (m³/min): 10
- Inner Diameter of Discharge Pipe (mm): 100
- Material Discharge Rate (t/h): 30 ~ 80
- Maximum Pressure (MPa): 0.2
