Welcome to Wuhan Yunsheng Special Vehicles!
QLC5072TXC1 type
QLC5072TXC1 type
Classification
QLC5072TXC1 type
Product Introduction

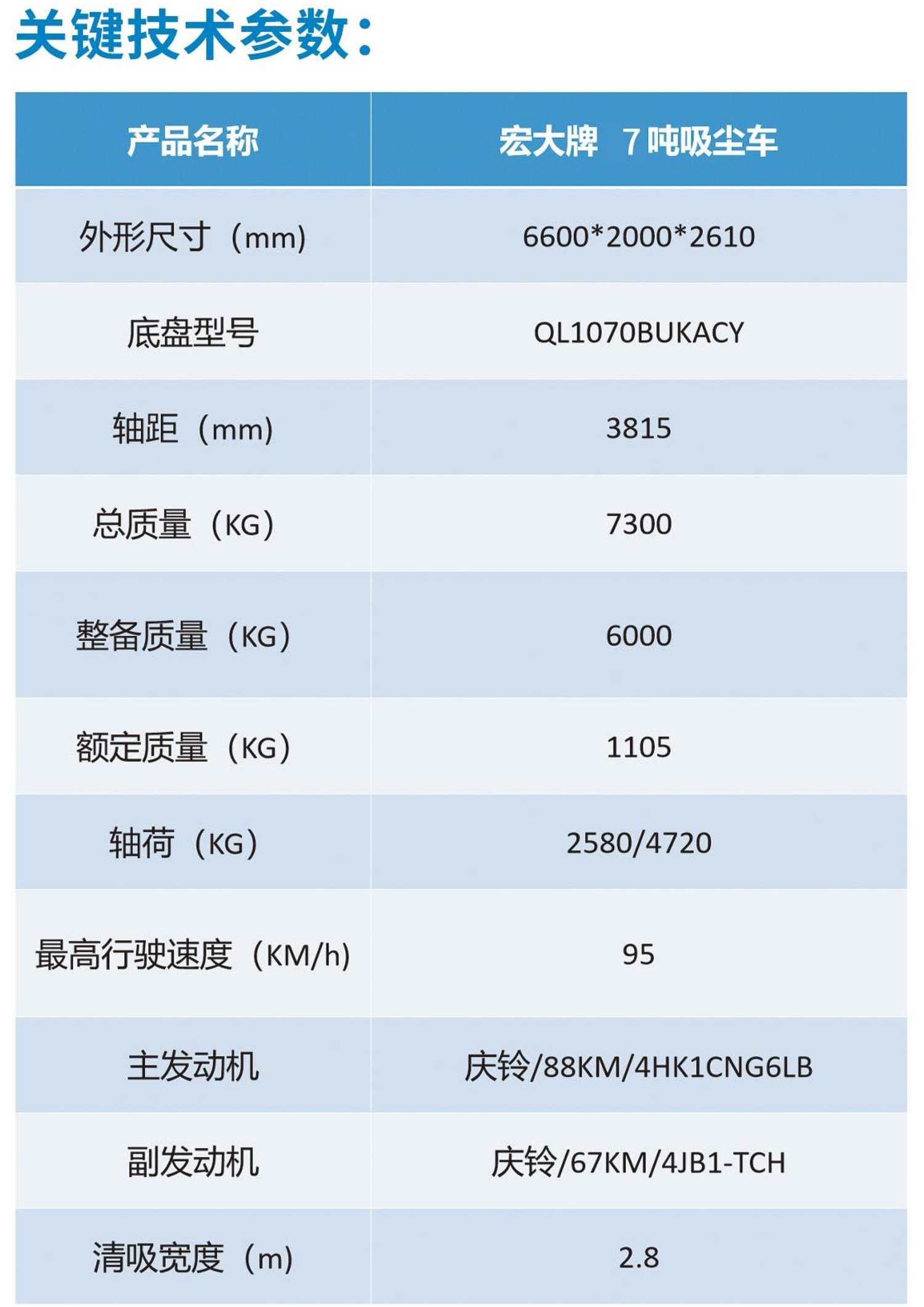

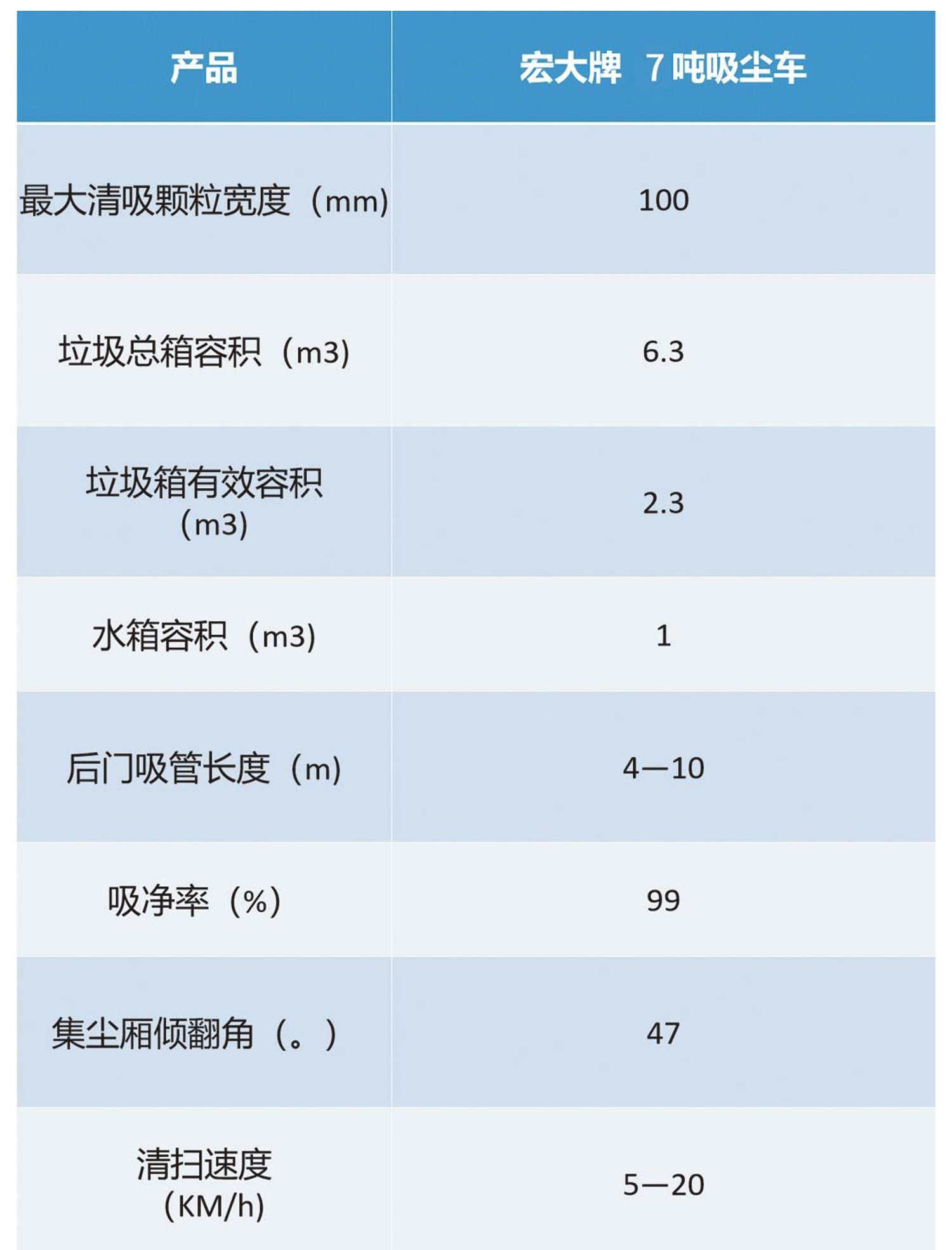

Key Technical Parameters
- Product Name: Hongda Brand 7 - ton Vacuum Cleaner Truck
- Overall Dimensions (mm): 6600*2000*2610
- Chassis Model: QL1070BUKACY
- Wheelbase (mm): 3815
- Gross Mass (kg): 7300
- Curb Mass (kg): 6000
- Rated Mass (kg): 1105
- Axle Load (kg): 2580/4720
- Maximum Travel Speed (km/h): 95
- Main Engine: Qingling / 88KM / 4HK1CNG6LB
- Auxiliary Engine: Qingling / 67KM / 4JB1 - TCH
- Cleaning Width (m): 2.8
- Maximum Cleaning Particle Width (mm): 100
- Total Garbage Bin Volume (m³): 6.3
- Effective Volume of Garbage Bin (m³): 2.3
- Water Tank Volume (m³): 1
- Rear Door Suction Pipe Length (m): 4 - 10
- Suction Rate (%): 99
- Dust Collection Compartment Tipping Angle (°): 47
- Cleaning Speed (km/h): 5 - 20
