All-weather wet and dry vacuum cleaner

The "Hongda" brand all-weather wet and dry vacuum cleaner represents a comprehensive upgrade to the traditional architecture of washing, sweeping, and vacuuming vehicles. It features advanced core technologies such as "pure suction + integrated roller brush design," "three-stage compartment layout," "five-level dust separation technology," and "multi-terrain adaptive suction cup." It is meticulously crafted.

Classification

Sweeping and vacuuming vehicle

Contact Us

online message

All-weather wet and dry vacuum cleaner

Product Introduction

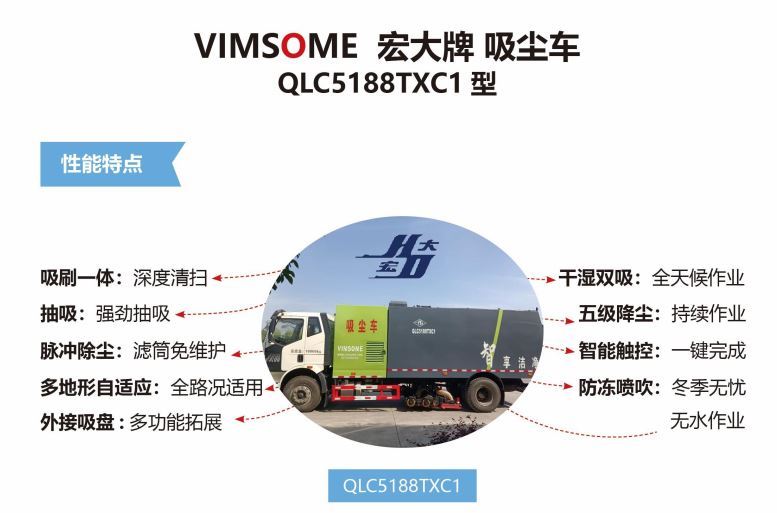

Performance Features

  • Integrated Suction and Brushing: Enables deep cleaning.
  • Strong Suction: Delivers powerful suction force.
  • Pulse Dust Removal: Filter cartridges require no maintenance.
  • Multi - terrain Adaptability: Suitable for all road conditions.
  • External Suction Disk: Allows for multifunctional expansion.
  • Dry and Wet Dual Suction: Enables all - weather operation.
  • Five - stage Dust Reduction: Supports continuous operation.
  • Intelligent Touch Control: Completes operations with one key.
  • Anti - freezing Blow: Ensures worry - free operation in winter.
  • Water - free Operation

Product Description

The “Hongda Brand” all - weather dry and wet vacuum cleaner truck adopts “suction and brushing integrated design”, “three - section cab layout”, “six - stage dust separation technology”, and “multi - terrain self - adaptation” and other patented core technologies. With elaborate design, it is a new - generation “magic tool” for road cleaning and dust removal.




The “Hongda Brand” all - weather dry and wet vacuum cleaner truck can efficiently and deeply clean dust, sand, stones, leaves, water stains, and construction waste on the road surface. It can operate normally in various terrains such as long slopes, speed - reducing belts, road shoulders, and guardrails. Especially in harsh environments with high dust, it can achieve high - intensity and long - time continuous operation.




The “Hongda Brand” all - weather dry and wet vacuum cleaner truck has “three major cleaning modes”, “four major function selections”, and “six major operation scenarios”. It adopts the “program preset” and “one - key completion” intelligent control mode for easy operation.

Technical Parameters

Vehicle

  • Vehicle Model: QLC5188TXC1
  • Overall Dimensions (mm): 9050×2500, 2506×3350, 3320, 2200
  • Total Mass/Curb Mass/Rated Load Mass (kg): 18000/14600/3205
  • Vehicle Speed Rating (km/h): 120
  • Water Tank Volume (m³): 4.0
  • Suction and Brushing Width (mm): 3000
  • Dust Collection Rate: 99%
  • Chassis Model: Jiefang CA1180P62K1L2E6Z

Chassis

  • Wheelbase (mm): 5300
  • Main Engine Power/Model: Dachai/155kW/CA6DK1 - L22E6
  • Emission Standard: China VI
  • Transmission: 8 - speed
  • Auxiliary Engine Power/Model: Dongfeng Cummins/119kW/QSB5.9 - C160 - 30
  • Clutch Brand: American WPT

Upper Assembly

  • Fan Power/Model: Beifang Taige/FCF11 - 7.5
  • Effective Volume of Dust Collection Tank (m³): 8.6
  • Water Tank Volume (m³): 2.5
  • Maximum Tipping Angle of Dust Collection Tank: 45°

Product Features

Dust Collection Tank

  • Adopts six - stage dust separation patented technology.
  • Effective volume reaches 8.6 m³.
  • Features an oversized main filter element centrally arranged layout.

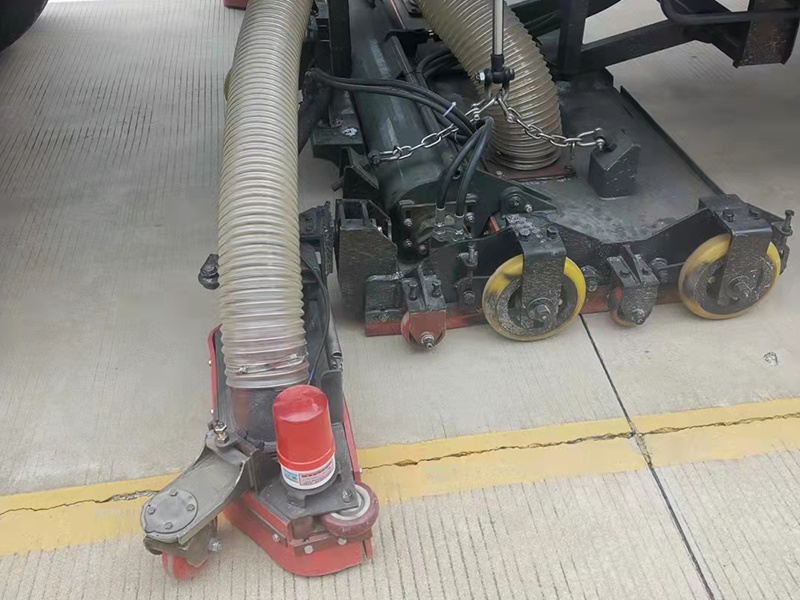

Suction Disk

  • Integrated suction and brushing design.
  • Intelligent control for lifting.
  • Adaptable to all road conditions and terrains.

Water Tank

  • Capacity of 2.5 m³.
  • Made of 304 stainless steel.
  • With low water level display and low water level alarm.

Power Unit

  • Equipped with Dongfeng Cummins National VI 160 - horsepower engine.
  • Features Beifang Taige 7.5 - wind - machine.
  • Adopts American WPT online pneumatic clutch.

Intelligent Control System

  • Preset with six major operation scenario interfaces.
  • Completes operation units with one key.
  • Equipped with a 10 - inch high - definition color touch - screen display.

Function Expansion

  • External multi - function suction disk.
  • Function expansion interface.

Operation Scenarios

Suitable for cleaning scenarios involving coal blocks, coal ash, stones, mud, hardened materials, bricks, etc.
