Sweeping vehicle

The street sweeper has multiple functions, including road cleaning, road sweeping, curb and curbstone facade washing, low-pressure washing, and spray dust removal. There are several operation modes selectable: “full wash and sweep”, “left wash and sweep”, “right wash and sweep”, and “full sweep”. Selecting the “full wash and sweep” mode for cleaning squares and roads offers high efficiency and good results, with a cleaning rate exceeding 95%. Selecting “left wash and sweep” or “right wash and sweep” modes cleans roads and curbs. When road sweeping or road cleaning is required, the sweeping mode can be selected. When spray dust removal is needed, the spray device can be activated for spray dust removal operations. Low-pressure washing operations on the road surface can be performed just like with a sprinkler truck. Street sweepers are suitable for mechanized cleaning, sweeping, and spray dust suppression operations on city roads, highways, squares, airports, docks, tunnels, bridges, isolation walls, curbs, and curbstone facades.

Classification

Sweeping vehicle

Product Introduction

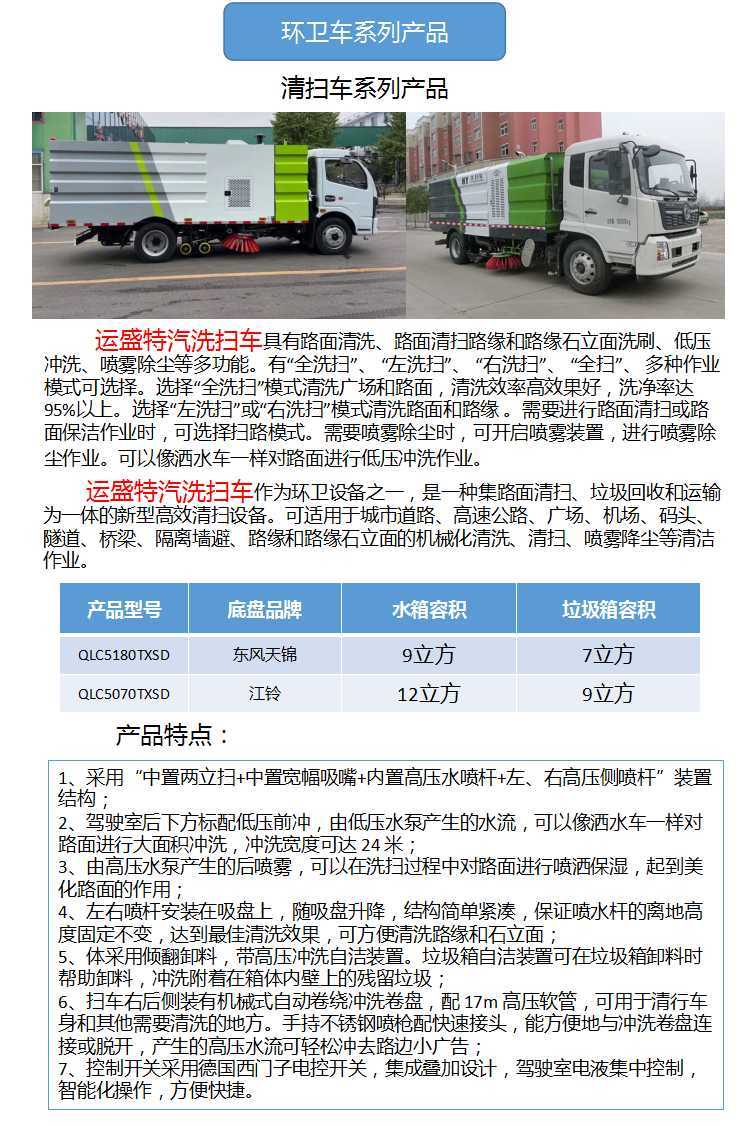

Sanitation Vehicle Series Products - Sweeper Series Products

1. Product Introduction

Yunsheng Teqi washing and sweeping vehicles have multiple functions such as road surface cleaning, road edge and curbstone vertical surface brushing, low - pressure flushing, and spray dust removal. There are multiple operation modes like “full washing and sweeping”, “left washing and sweeping”, “right washing and sweeping”, and “full sweeping” to choose from. Selecting the “full washing and sweeping” mode can achieve wide - range road surface cleaning with high efficiency and a cleaning rate of over 95%. Choose the “left washing and sweeping” or “right washing and sweeping” mode for cleaning roadsides and curbs. When road surface cleaning or road maintenance is needed, the road sweeping mode can be selected. When spray dust removal is required, the spray device can be activated for dust removal operations. It can also perform low - pressure flushing operations on road surfaces like a sprinkler truck.

As one of the sanitation equipment, Yunsheng Teqi washing and sweeping vehicle is a new - type efficient sweeping equipment integrating road surface sweeping, garbage collection, and transportation. It is applicable to the mechanized cleaning, sweeping, spray dust reduction, etc., of urban roads, expressways, squares, airports, wharves, tunnels, bridges, isolation walls, road edges, and curbstone vertical surfaces.

2. Product Models and Parameters

Product Model	Chassis Brand	Water Tank Volume	Garbage Bin Volume
QLC5180TXSD	Dongfeng Tianjin	9 cubic meters	7 cubic meters
QLC5070TXSD	JMC	12 cubic meters	9 cubic meters

3. Product Features

Adopts the structure of “middle - placed double vertical brushes + middle - placed wide - amplitude suction nozzle + built - in high - pressure water spray rod + left and right high - pressure side spray rods”.
The lower rear of the cab is equipped with a low - pressure front flush. The water flow generated by the low - pressure water pump can flush a large area of the road surface like a sprinkler truck, with a flushing width of up to 24 meters.
The rear spray generated by the high - pressure water pump can spray and humidify the road surface during the washing and sweeping process, playing a role in beautifying the road surface.
The left and right spray rods are installed on the suction cup and lift with the suction cup. The structure is simple and compact, ensuring that the height of the water spray rod from the ground remains fixed, achieving the best cleaning effect, and facilitating the cleaning of curbs and stone surfaces.
The body adopts a tilting and unloading material structure with a high - pressure self - cleaning device. The garbage bin self - cleaning device can help unload materials when the garbage bin unloads materials and flush the residual garbage attached to the inner wall of the box body.
A mechanical automatic winding and washing plate is installed on the right rear side of the sweeper truck, equipped with a 17m high - pressure soft pipe, which can be used to clean the vehicle body and other places that need cleaning. The handheld stainless steel spray gun is equipped with a quick connector, which can be conveniently connected to or disconnected from the washing plate, and the generated high - pressure water flow can easily wash away small advertisements on the roadside.
The control switch adopts German Siemens electric control switches with an integrated superimposed design. The cab has electric - hydraulic centralized control and intelligent operation, which is convenient and fast.
