QLC5316GXY1 type

Classification

pulling and pumping tanker

QLC5316GXY1 type

Product Introduction

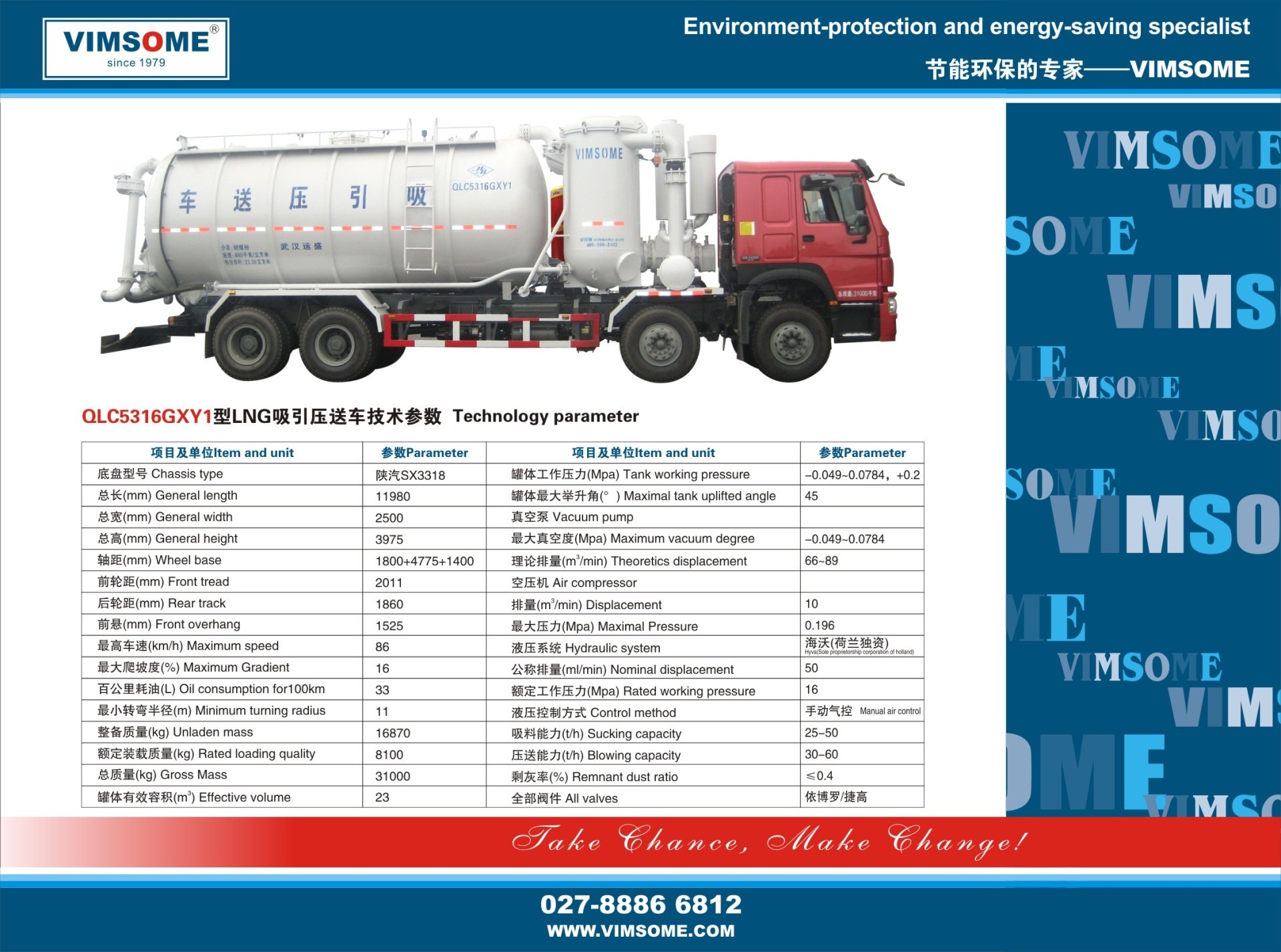

Technical Parameters

Chassis type: Shacman SX3318
General length: 11980 mm
General width: 2500 mm
General height: 3975 mm
Wheel base: 1800 + 4775 + 1400 mm
Front tread: 2011 mm
Rear tread: 1860 mm
Front overhang: 1525 mm
Maximum speed: 86 km/h
Maximum gradient: 16%
Oil consumption for 100km: 33 L
Minimum turning radius: 11 m
Unladen mass: 16870 kg
Rated loading quality: 8100 kg
Gross mass: 31000 kg
Effective volume of tank: 23 m³
Tank working pressure (Mpa): -0.049 - 0.0784, +0.2
Maximal tank uplifted angle (°): 45
Vacuum pump: -
Maximum vacuum degree (Mpa): -0.049 - 0.0784
Theoretics displacement (m³/min): 66 - 89
Air compressor: -
Displacement (m³/min): 10
Maximal pressure (Mpa): 0.196
Hydraulic system: Hyva (Imported from the Netherlands)
Nominal displacement (m³/min): 50
Rated working pressure (Mpa): 16
Control method: Manual air control
Sucking capacity (t/h): 25 - 50
Blowing capacity (t/h): 30 - 60
Remnant dust ratio (%): ≤0.4

Wuhan Yunshengte Automobile Manufacturing Co., Ltd.

Contact Tel: 027 - 88866283/205
