Welcome to Wuhan Yunsheng Special Vehicles!
QLC5265GXC type
Capacity 15 cubic meters
QLC5265GXC type
Product Introduction

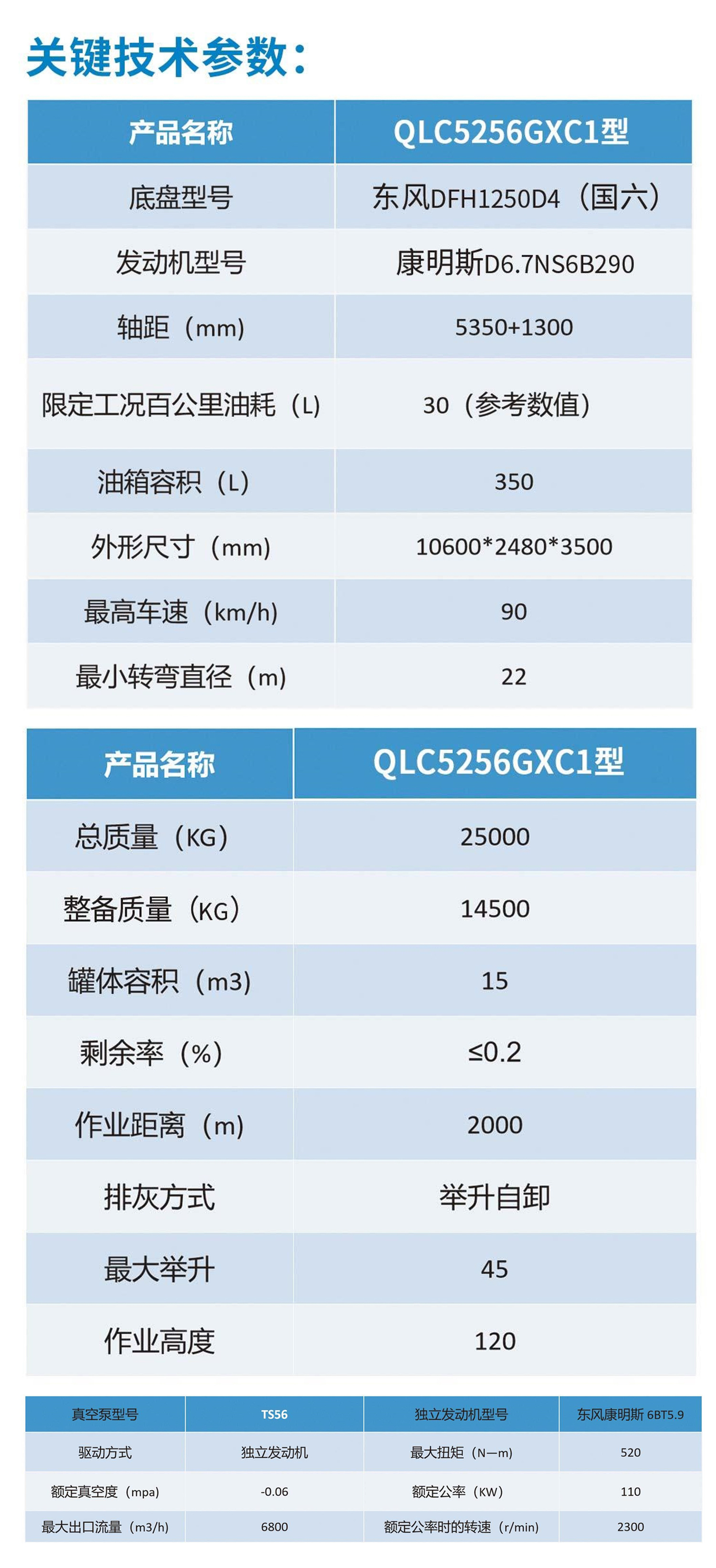

Key Technical Parameters
- Product Name: QLC5256GXC1 Type
- Chassis Model: Dongfeng DFH1250D4 (China VI)
- Engine Model: Cummins D6.7NS6B290
- Wheelbase (mm): 5350 + 1300
- Fuel Consumption per 100 km Under Defined Working Conditions (L): 30 (Reference Value)
- Fuel Tank Capacity (L): 350
- Overall Dimensions (mm): 1060024803500
- Maximum Speed (km/h): 90
- Minimum Turning Diameter (m): 22
- Gross Mass (KG): 25000
- Curb Mass (KG): 14500
- Tank Volume (m³): 15
- Residue Rate (%): ≤0.2
- Operation Distance (m): 2000
- Ash Discharging Method: Lifting and Self - unloading
- Maximum Lifting: 45
- Operation Height: 120
- Vacuum Pump Model: TS56
- Independent Engine Model: Dongfeng Cummins 6BT5.9
- Drive Mode: Independent Engine
- Maximum Torque (N - m): 520
- Rated Vacuum Degree (mpa): - 0.06
- Rated Power (kW): 110
- Maximum Outlet Flow (m³/h): 6800
- Rotational Speed at Rated Power (r/min): 2300
