Emergency Power Vehicle
Classification
Emergency Power Vehicle
Product Introduction

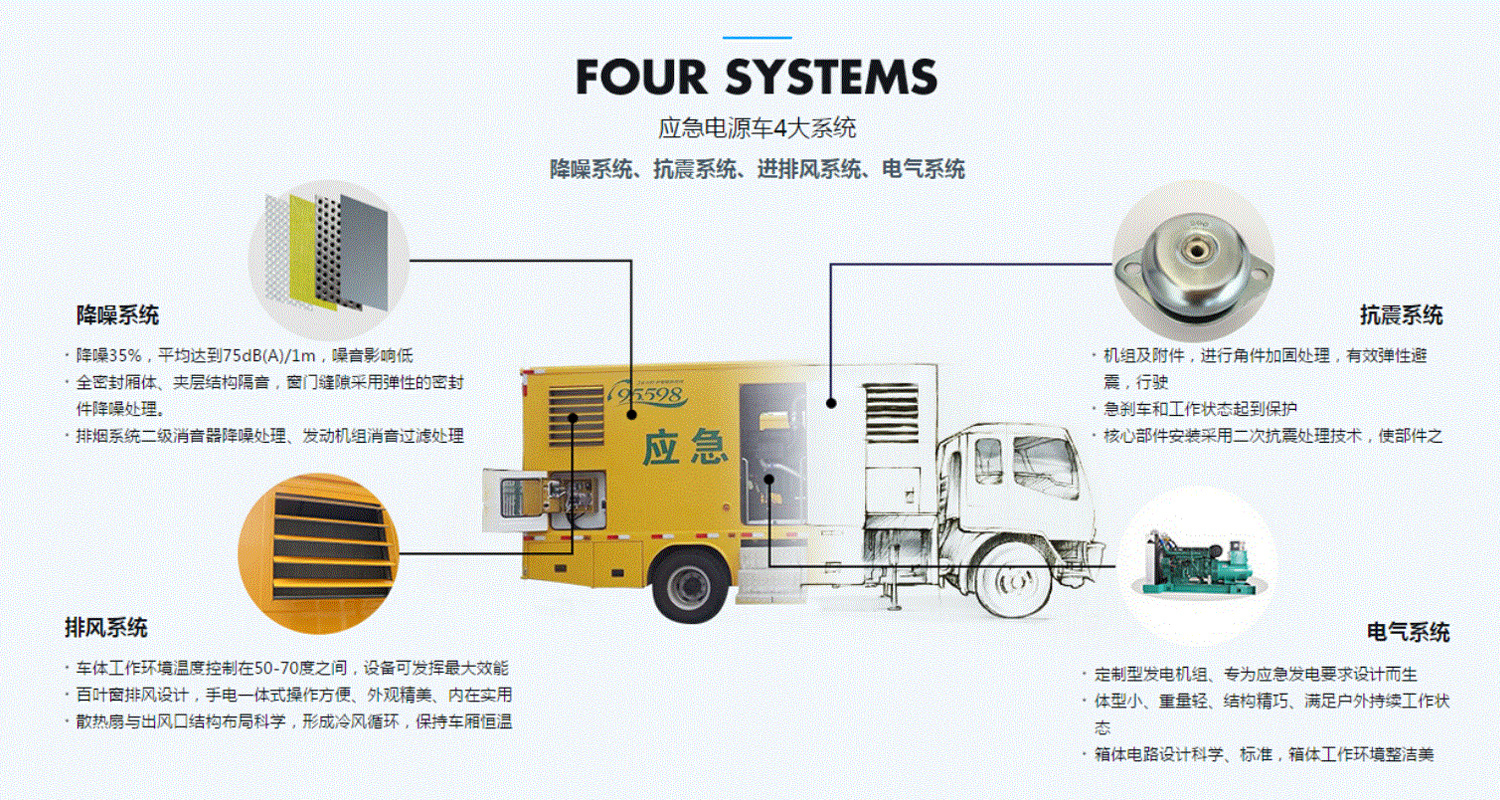

Our company's emergency power supply vehicle is based on the user's requirements for the capacity and performance of the diesel generator set. We select a chassis with an aesthetically pleasing appearance and excellent performance, and install a diesel generator set with high reliability and excellent usability into a soundproofed compartment, modified from a standard cargo box, which is highly sound-absorbing and suitable for the operation of a diesel generator set, thus combining to form a perfect mobile power station. It has good off-road performance and adaptability to various road surfaces, suitable for all-weather outdoor operations, featuring stable and reliable overall performance, simple operation, low noise, good emission performance, and good maintainability. It can well meet the needs of outdoor operations and emergency power supply.
Applicable Fields
Applied in emergency power supply fields such as electricity, telecommunications, flood control and drought relief, mining, petroleum, geology, and disaster relief.
Yunshengteqi emergency power supply vehicles are special vehicles equipped with boxes, generator sets, and power management systems on the basis of a fixed type II vehicle chassis. They are mainly used for emergency power supply in handling sudden events. Our company has successfully cooperated with many major generator set manufacturers in China and delivered many batches of high-quality power supply vehicles to State Grid, China Mobile, China Telecom, and PetroChina.
We offer a full range of emergency power supply vehicles from 20KW to 2000KW. Chassis brands include Isuzu, Dongfeng, Iveco, Mercedes-Benz, and Volvo. Box lengths range from 3.5 to 9.5 meters.
Product Features:
1.Millisecond-Level:Millisecond-level uninterrupted power supply, providing exceptional power protection.
2.High Endurance:Flywheel energy storage USP and diesel generator sets, through intelligent control, achieve uninterrupted, long-term power supply for important loads.
3.High Reliability:The application of magnetic levitation flywheel technology eliminates unreliable components in traditional UPS, achieving a reliability of 99.99%; it can adapt to complex working environments with low temperature requirements. Starting temperature -20℃ to 40℃, operating temperature 0℃ to 40℃.
4.High Efficiency:Thanks to advanced flywheel energy storage technology, the system efficiency is as high as 98%.
5.Easy Maintenance:Ultra-long service life, ensuring a service life exceeding 20 years without performance and efficiency degradation over time, and without the need to replace energy storage modules.
6.Low Overall Noise:Adopting flywheel technology, it features constant speed, low noise, and low friction, reducing noise emissions during operation.
7.Low-Carbon and Energy-Saving:The generating set of the mobile flywheel energy storage emergency power supply system is in a cold backup state, which can effectively reduce fuel consumption, save fuel costs, and reduce environmental pollution.
Tianjin National VI Yuchai 200KW Power Vehicle Configuration
Vehicle Model | QLC5120XDY1 | Chassis Parameters | DFH1120E1 |
Overall Size | 8840*2500*3530 | Compartment Size | 3600×2500×2470 |
Gross Weight | 12490KG | Curb Weight | 12295KG |
Fuel Type | Diesel | Emission Standard | GB17691-2018 National VI |
Leaf Spring Type and Specification | 7/9+6 | Tire Specification | 9.00R20 16PR |
Axle Load (kg) | 4400/8090 | Wheelbase | 4700mm |
Maximum Speed | 89 | Displacement | 6200 |
Engine Model | B6.2NS6B210 | Power (KW) | 154 |
Side Protection Type | Apron Type | ||
Isuzu National VI 200KW Power Vehicle Configuration
Vehicle Model | QLC5110XDY1 | Chassis Parameters | DFH1110ANMAY |
Overall Size | 8225*2355*3550 | Compartment Size | Length 6270 |
Gross Weight | 10550KG | Curb Weight | 10355KG |
Fuel Type | Diesel | Emission Standard | GB17691-2018 National VI |
Leaf Spring Type and Specification | 8/10+6 | Tire Specification | 235/75R17.5 16PR |
Axle Load (kg) | 3500/7050 | Wheelbase | 4475mm |
Maximum Speed | 110 | Displacement | 5193 |
Engine Model | 4HK1-TCG61 | Power (KW) | 139 |
Side Protection Type | Apron Type | ||
Generator Set Parameters | See Main Performance Parameters | ||
